Running SOA Suite on Amazon EC2

SOA Suite on EC2

SOA Suite on EC2

One of the things on my To Do list was to move my local SOA Suite 11g R1 to The Cloud. It seemed a good idea to save my laptop some resources (to spare some for JDeveloper) with only a limited investment. Besides that it can be a good way to demo applications, and work together with my colleagues on these demos.

During the last months I noticed that there are several good blogpost on the subject. In this post I’ll show you the ones I used and provide some additions to them.

Setting up Amazon Web Services (EC2 and S3)

This arcticle on OTN guided me while signing up for:

  • Amazon AWS
  • Amazon S3 – Simple Storage Service
  • Amazon EC2 – Elastic Compute Cloud

and to setup PuTTY. The only hick-up here was that I’m using the PortableApps version of PuTTY that doesn’t come with the puttygen – Key Generator.

Provisioning a SOA Server on Amazon EC2

This blogpost guided me in the provisioning of the AMI (Amazon Machine Image).

  • AMIs are per region: The Amazon Machine Instance (AMI) for SOA Suite (id = ami-acb557c5) is only available in the US East (Northern Virginia) Region.
  • Don’t bother to setup the Elastic Block Store (EBS) Volume. It is scripted in the latest version of the AMI, as described in step 5 of “SSH to your image and accept license”. The EBS Volume is seeded using a snapshot (id = snap-dd980db4) that is provided. This volume will be used to persist your data across sessions and AMI start/stop.

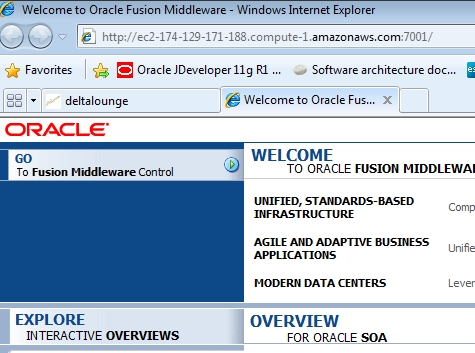

  • When launching the image (during the Configure Firewall step) set the SecurityGroup to accept HTTP traffic on port 7001 in case you want to use the SOA Suite from outside the Image.
