Choosing your Oracle Application Integration Infrastructure

Today I presented at ODTUG Kaleidoscope. The presentation is aimed at supporting architects and especially developers to choose the right integration infrastructure for a job.

Kscope 11 FMW Symposium

Sharing some highlights from Symposium Sunday of Kscope 2011. The two most remarkable quotes of the day are:

ADF is the “Paint by the Numbers” for web front end development.

The most common application integration tools/solutions used are Post-it and a paper notepad.

However the real gem I discovered during this first day was:

User Experience Design Patterns

Madhuri Kolhatkar has delivered a great presentation on the effort Oracle has put into creating and implementing User Experience Design Patterns. Extended information is available on the Usable Apps pages of the Oracle website. Great insight on how this can help you in developing and delivering your applications can for example for OBIEE be found on Design Patterns and Guidelines for Oracle Applications. Take special note of the Pattern Selection Tool.

Kscope 2011 Solid Service Bus implementations


From now on counting down in days to the upcoming ODTUG Kscope 2011. ODTUG is a user group for for a wide range of technologists working with the Oracle platforms. During this conference I’ll be presenting on solid Service Bus implementations using the Oracle Service Bus, Mediator or both. The full schedule of Kscope is here.

Purging BPEL and ESB instances

The question on the ability to purge instances for both Oracle BPEL and Oracle ESB keeps recurring so I decided to come up with a small overview.

Oracle BPEL

  • FMW version 11.1.1.4 and up, there is a new version of the purge_soainfra_oracle.sql. Ensure that you run the purge setup scripts from the 11.1.1.4 RCU or 11.1.1.5 RCU location, respectively, as this contains the latest purge details. Details are in the SOA Admin Guide
  • FMW version 11.1.1.1 and up, there is a purge_soainfra_oracle.sql script in the RCU_HOME/rcu/integration/soainfra/sql/purge directory. In the release before 11.1.1.4 you need to apply patch 10297850 to obtain the updated purge scripts. More details are in the FMW Admin Guide on Managing Database Growth. Mark Kelderman posted on how to improve the performance of this script by adding a specific index.
  • From BPEL in SOA Suite version 10.1.3.3.1 and up, there is a purge_instances_oracle.sql script in the SOA_HOME/bpel/system/database/scripts directory.
  • For BPEL in SOA Suite version 10.1.3.1 you need patch 7162289. After applying this patch purge_instances_oracle.sql will be located at SOA_HOME/bpel/system/database/scripts.
  • In case you’re still running BPEL 10.1.2.0.2 check Oracle support document 398578.1 and document 341102.1

Oracle ESB

  • For Mediator in FMW 11g refer to the scripts and links mentioned in the BPEL paragraph.
  • To purge ESB instances in 10.1.3.4 you need to apply at least MLR#4 to have purge scripts available. There are 3 scripts available:
  • $ORACLE_HOME/integration/esb/sql/other/purge_by_date.sql
    $ORACLE_HOME/integration/esb/sql/other/purge_by_id.sql
    $ORACLE_HOME/integration/esb/sql/other/purge_by_instance_id.sql


Update 2011-06 SOA Suite 11gR1 PS3

Recently the SOA Suite Engineering Team published a presentation on Purging strategies in Oracle SOA Suite 11gR1 PS3. Besides the information presented in this post, the presentation goes into targeted deletion from the EM and looks into looped and parallel purges. It also mentions the use of database partitioning. That can be very useful when you have long running instances and a large installation (the presentation gives more than 500GB total OR more than 10GB daily depending on environment specifics).

Update 2011-07 Purging the Extreme Edition

Mark Kelderman posted a blog on Purging SOA Suite 11g Extreme Edition. He give a SQL script that deletes data from Mediator, BPEL, BPM, Workflow and Composite, and after that reclaims disk space.

Update Purge Oracle Service Bus

Marc Kelderman posted on his blog on Purging OSB Report Data. Besides the default way to delete the data using the console. He also gives a SQL script to purge directly in the database.

SOA 11g database growth strategies

In January of 2012 the Oracle Fusion Middleware whitepaper on database growth strategies was published. The advice presented should facilitate better dialog between SOA and Database administrators when planning database and host requirements. An important aspect of the whitepaper is purging of the SOA database.

Related documentation:

Updated purging strategies on Oracle Support

purging in OFM 11gAs part of the Oracle Fusion Middleware (FMW) SOA 11g Infrastructure Database: Installation, Maintenance and Administration Guide [ID 1384379.1] A purging guide has been published to offer strategies and procedures for managing database growth in a production SOA 11g implementation.
Purging is not supported for MS SQL Server out of the box or through a patch in any version of 11g. The provided scripts can, however, be used as a solid base from which to create usable purge scripts for SQL Server.

Install OSB next to VirtualBox SOA Suite 11g Appliance

In this post will show you how to install the Oracle Service Bus on the VirtualBox SOA Suite 11g appliance. For this demo we used a pretty straightforward installation scheme.

Oracle WebLogic Server installation

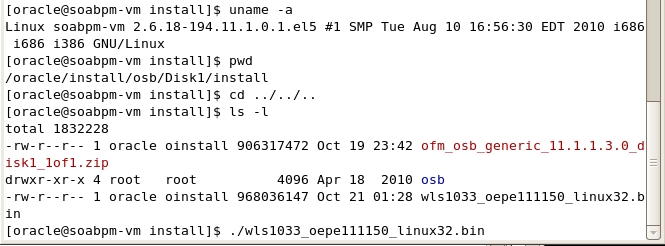

Download wls1033_oepe111150_linux32.bin for installation on Linux. Install using the command ./wls1033_oepe111150_linux32.bin:

Install WebLogic 10.3.3


The following screenshots will give you a good idea of the installation flow.

Oracle Service Bus installation

Start the Disk1/runInstaller.sh and specify the JRE/JDK location /oracle/osbhome/jdk160_18/.

Install Oracle Service Bus


This sequence of screenshots gives you a good impression.

Configure a WebLogic Domain

Configure a Domain using the Oracle Fusion Middleware Configuration Wizard using ./config.sh in the /oracle/osbhome/oracle_common/common/bin directory.
Configuring a WLS Domain
A straightforward configuration of the WLS Domain requires the following steps:


Start WebLogic

./startWebLogic.sh and Have Fun!
