In June gartner published it’s Magic Quadrant for Application Infrastructure for Systematic SOA Infrastructure Projects. Due to the nature of SOA initiatives the selection of technologies and products aimed at supporting the implementation of the SOA infrastructure is done upfront. The resulting platform is shared among SOA applications and other integration initiatives in the enterprise.
To address the need for SOA infrastructure vendors typically have “SOA suites” of “SOA platforms”. These package products like:
Magic Quadrant for Application Infrastructure for Systematic SOA Infrastructure
All open source vendors are in the visionary quadrant. In some cases their offerings are more modern than the Leaders’ products, since they are hardly burdened with backward compatibility issues. However these vendors are constrained by their small size or sometimes inconsistent execution.
In general the open source platforms are less expensive and easier to implement and deploy. However their offerings are generally less comprehensive than the Leaders’ offerings. If these offerings fit your requirements this could be an easy-to-use/low-cost SOA infrastructure for your organisation. The open source platforms are a strong technology offering.
Other recent Magic Quadrants for SOA and integration
In the 10g release of Oracle SOA Suite you could set properties to instruct web service calls to go via SOAP or not. If you were calling services on the same server or domain you could gain some performance with a native call and avoiding the SOAP overhead. To do this you would set the optSoapShortcut property.
With SOA Suite 11g on WLS SOAP optimization is automatically configured. In the scenario where you upgraded to 11g R1 and are using this optimization shortcut approach, you should specify the Server URL in the SOA Infrastructure Common Settings. Optimized calls are only active when the host name value (referred to as WSDL URL in the composite.xml) matches the Server URL.

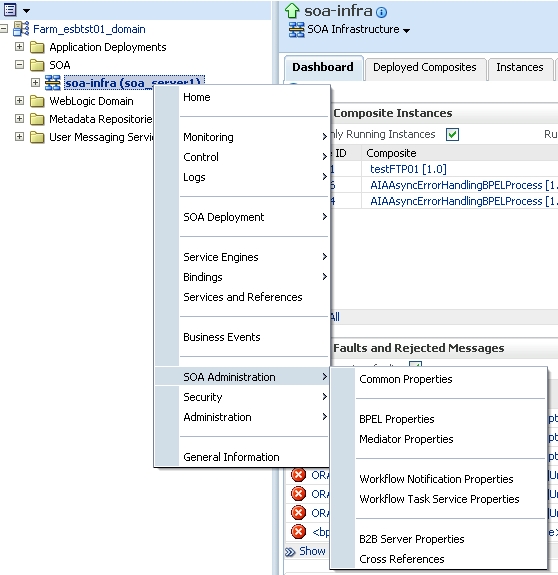

To configure the SOA Infrastructure Common Settings choose from the SOA Infrastructure Menu > SOA Administration > Common Properties. As shown in the screenshot. Other access ways to this configuration screen are described here.

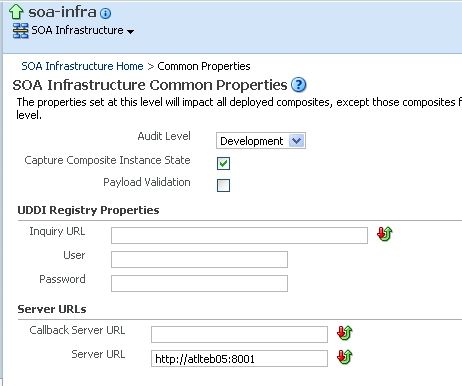

Enter the server URL in the Server URLs section. This URL is published as part of the SOAP address of a service in the concrete WSDL file. Either set both values to the host name (for example, myhost) or to the full domain name (for example, myhost.domain.com). If these values do not match, a regular SOAP call is performed instead of an optimized local call.
One of the scenarios that you have to set the Server URL in order to use the optimized local call is after a migration of AIA to AIA 11g R1.
